WebEx Calling widgets – Calls by Cisco handset type
Definition
This widget allows you to view all calls made from a specific Cisco handset model, such as the 7811, 7821, 7841, or 7861. By selecting the required model number, you can easily search for and analyse all calls originating from that handset type.
Output list
- Leg Start
- Call Direction
- Calling Digits
- Calling Device Model Name
- Calling Device Mac Address
- Calling Label
- Called Digits
- Called Device Model Name
- Called Device Mac Address
- Called Label
- Calling Full Name
- Called Full Name
- Talk Time
- Ring Time
- Base Cost Net
- Base Cost Currency Code
- Outcome

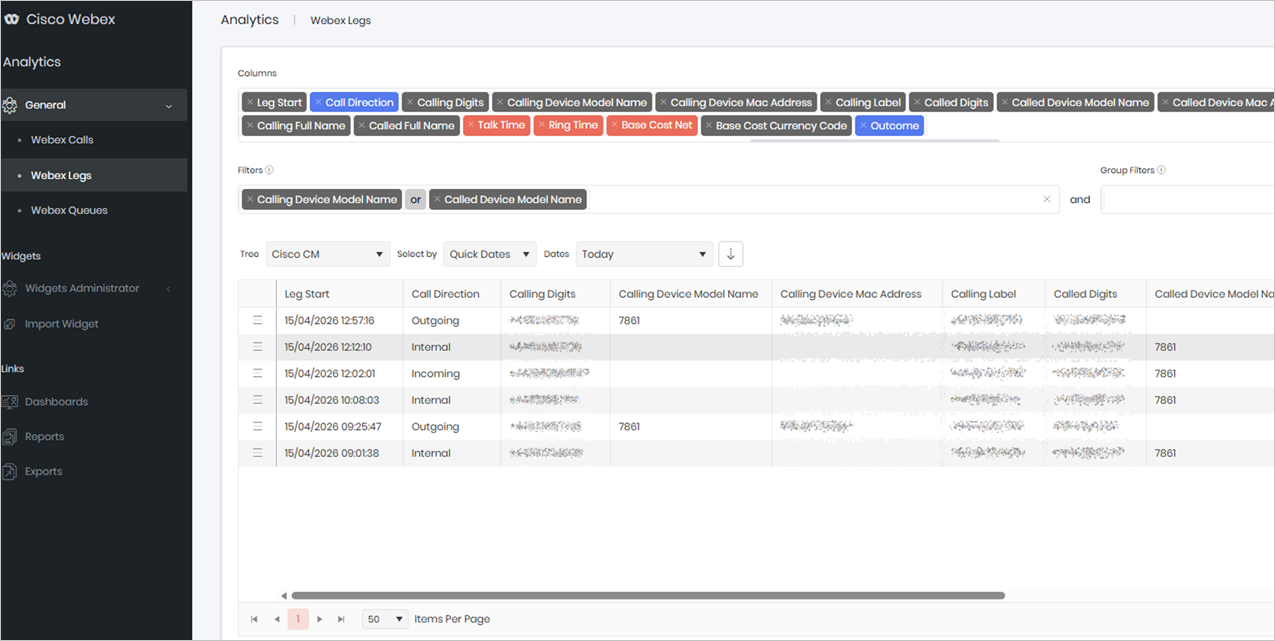

Sample output
Modifications
To search across all call types, you must enter the four‑digit device model number in both the Calling Device Model Name and Called Device Model Name fields.
Widget definition
{"ViewGuid":"ec42ce2a-e5b8-45ab-a5fd-239f39a55f04","Definition":{"ColumnAggregates":[{"Alias":"map_LegStart_3673fd2660a35fa7","Label":"Leg Start","ColumnId":"map_LegStart","AggregateType":"Value","IsAggregate":false,"IsExpanded":false,"Type":-2},{"Alias":"legDirection_DirectionName_88381a138c74f67f","Label":"Call Direction","ColumnId":"legDirection_DirectionName","AggregateType":"Value","IsAggregate":false,"IsExpanded":false,"Type":-3},{"Alias":"callingEndPoint_CallingPhoneNumber_e291059862e2281f","Label":"Calling Digits","ColumnId":"callingEndPoint_CallingPhoneNumber","AggregateType":"Value","IsAggregate":false,"IsExpanded":false,"Type":-2},{"ColumnId":"callingDeviceModel_DeviceModelName","IsNew":true,"Type":-2,"Alias":"callingDeviceModel_DeviceModelName_4de1697338cc70c7","Label":"Calling Device Model Name"},{"ColumnId":"callingDeviceMac_DeviceMacName","IsNew":true,"Type":-2,"Alias":"callingDeviceMac_DeviceMacName_0a2a6a7661587f9b","Label":"Calling Device Mac Address"},{"Alias":"callingEndPoint_CallingLabel_c6d33e9fa3966aa9","Label":"Calling Label","ColumnId":"callingEndPoint_CallingLabel","AggregateType":"Value","IsAggregate":false,"IsExpanded":false,"Type":-2},{"Alias":"calledEndPoint_CalledPhoneNumber_62b86a06cc81efa5","Label":"Called Digits","ColumnId":"calledEndPoint_CalledPhoneNumber","AggregateType":"Value","IsAggregate":false,"IsExpanded":false,"Type":-2},{"ColumnId":"calledDeviceModel_DeviceModelName","IsNew":true,"Type":-2,"Alias":"calledDeviceModel_DeviceModelName_b95c7f2e4451ed00","Label":"Called Device Model Name"},{"ColumnId":"calledDeviceMac_DeviceMacName","IsNew":true,"Type":-2,"Alias":"calledDeviceMac_DeviceMacName_2de5b3fc25dbb156","Label":"Called Device Mac Address"},{"Alias":"calledEndPoint_CalledLabel_bdeab68324e286de","Label":"Called Label","ColumnId":"calledEndPoint_CalledLabel","AggregateType":"Value","IsAggregate":false,"IsExpanded":false,"Type":-2},{"Alias":"callingPerson_FullName_b96e550f102a6c5f","Label":"Calling Full Name","ColumnId":"callingPerson_FullName","AggregateType":"Value","IsAggregate":false,"IsExpanded":false,"Type":-2},{"Alias":"calledPerson_FullName_424f0191f4a3735e","Label":"Called Full Name","ColumnId":"calledPerson_FullName","AggregateType":"Value","IsAggregate":false,"IsExpanded":false,"Type":-2},{"Alias":"leg_TalkTimeMilliseconds_1ca17ef2d18d35e8","Label":"Talk Time","ColumnId":"leg_TalkTimeMilliseconds","AggregateType":"Value","IsAggregate":false,"IsExpanded":false,"Type":-1},{"Alias":"leg_RingTimeMilliseconds_a243c71f3f606742","Label":"Ring Time","ColumnId":"leg_RingTimeMilliseconds","AggregateType":"Value","IsAggregate":false,"IsExpanded":false,"Type":-1},{"Alias":"costCharge_BaseChargeNet_a8b4ca9c68e5f33f","Label":"Base Cost Net","ColumnId":"costCharge_BaseChargeNet","AggregateType":"Value","IsAggregate":false,"IsExpanded":false,"Type":-1},{"Alias":"costBaseCurrency_CurrencyCode_fd67feaecfa5e4f2","Label":"Base Cost Currency Code","ColumnId":"costBaseCurrency_CurrencyCode","AggregateType":"Value","IsAggregate":false,"IsExpanded":false,"Type":-2},{"Alias":"legOutcome_OutcomeName_bf4997fc2868de92","Label":"Outcome","ColumnId":"legOutcome_OutcomeName","AggregateType":"Value","IsAggregate":false,"IsExpanded":false,"Type":-3}],"PreFilters":[{"ColumnId":"callingDeviceModel_DeviceModelName","FilterColumnAlias":null,"IsNew":true,"Operator":"Contains","Value":"7861","Type":0,"Alias":"callingDeviceModel_DeviceModelName_aa5584af9e99b47c","Label":"Calling Device Model Name"},{"Symbol":"|"},{"ColumnId":"calledDeviceModel_DeviceModelName","FilterColumnAlias":null,"IsNew":true,"Operator":"Contains","Value":"7861","Type":0,"Alias":"calledDeviceModel_DeviceModelName_3a37a9c6c10d77df","Label":"Called Device Model Name"}],"PreGroupFilters":[],"Parameters":{"SelectedTreeId":"1","DateSelectionMethod":"UseQuickDates","QuickDate":{"Type":"2","FromLocal":"15/04/2026 00:00:00","ToLocal":"15/04/2026 23:59:59"}},"GridSettings":"{\"columns\":[{\"index\":0,\"field\":\"Id\",\"width\":45,\"hidden\":false},{\"index\":1,\"field\":\"map_LegStart_3673fd2660a35fa7\",\"width\":152,\"hidden\":false},{\"index\":2,\"field\":\"legDirection_DirectionName_88381a138c74f67f\",\"width\":118,\"hidden\":false},{\"index\":3,\"field\":\"callingEndPoint_CallingPhoneNumber_e291059862e2281f\",\"width\":132,\"hidden\":false},{\"index\":4,\"field\":\"callingDeviceModel_DeviceModelName_4de1697338cc70c7\",\"width\":205,\"hidden\":false},{\"index\":5,\"field\":\"callingDeviceMac_DeviceMacName_0a2a6a7661587f9b\",\"width\":206,\"hidden\":false},{\"index\":6,\"field\":\"callingEndPoint_CallingLabel_c6d33e9fa3966aa9\",\"width\":124,\"hidden\":false},{\"index\":7,\"field\":\"calledEndPoint_CalledPhoneNumber_62b86a06cc81efa5\",\"width\":122,\"hidden\":false},{\"index\":8,\"field\":\"calledDeviceModel_DeviceModelName_b95c7f2e4451ed00\",\"width\":201,\"hidden\":false},{\"index\":9,\"field\":\"calledDeviceMac_DeviceMacName_2de5b3fc25dbb156\",\"width\":203,\"hidden\":false},{\"index\":10,\"field\":\"calledEndPoint_CalledLabel_bdeab68324e286de\",\"width\":119,\"hidden\":false},{\"index\":11,\"field\":\"callingPerson_FullName_b96e550f102a6c5f\",\"width\":142,\"hidden\":false},{\"index\":12,\"field\":\"calledPerson_FullName_424f0191f4a3735e\",\"width\":139,\"hidden\":false},{\"index\":13,\"field\":\"leg_TalkTimeMilliseconds_1ca17ef2d18d35e8\",\"width\":93,\"hidden\":false},{\"index\":14,\"field\":\"leg_RingTimeMilliseconds_a243c71f3f606742\",\"width\":95,\"hidden\":false},{\"index\":15,\"field\":\"costCharge_BaseChargeNet_a8b4ca9c68e5f33f\",\"width\":121,\"hidden\":false},{\"index\":16,\"field\":\"costBaseCurrency_CurrencyCode_fd67feaecfa5e4f2\",\"width\":194,\"hidden\":false},{\"index\":17,\"field\":\"legOutcome_OutcomeName_bf4997fc2868de92\",\"width\":105,\"hidden\":false}],\"sortField\":null,\"sortDir\":null,\"pageSize\":50}"},"DefinitionVersion":1}
